Control Valves

Kawasaki's hydraulic valves and controllers provide superior performance and control for a wide variety of construction machinery, industrial equipment and shipbuilding.
Kawasaki's offers various type of control valves that can be selected depending on the application, type of control, and control flow range.

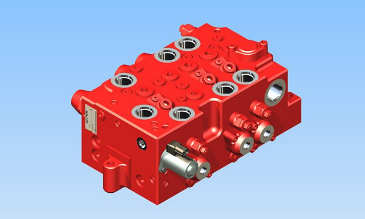

Control Valves KLR series

  • KLR series
    Pressure (MPa) 27
    Flow (L/min) 200

  • KLR series is a Load Sensing Valve which is optimized for Compact track loader and Skid-steer loader. Closed-center load sensing system can be realized in combination with a variable displacement pump.

    Features
    • Optimized design for CTL (Compact track loader) and SST (Skid-steer loader).
    • Superior control is achieved with Flow Sharing (Post-Compensator).
    • Bucket self-leveling function, Arm float function and Auxiliary section are available.
    Actuation Type (Electric / Hydraulic)

    Variable pump system / Load sensing

    • Hydraulic

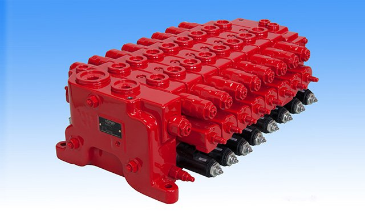

Control Valves KLSV series

  • KLSV series
    Pressure (MPa) 40
    Flow (L/min) 240–450

  • KLSV series is a Load Sensing Valve which is designed to control actuators on construction and industrial vehicles. Closed-center load sensing system can be realized in combination with a variable displacement pump.

    Features
    • Superior control is achieved with Flow Sharing (Post-Compensator).
    • Low pressure loss contributes to reduction of energy consumption of the hydraulic system.
    • High pressure capability enables the hydraulic system more efficient and compact.
    Actuation Type (Electric / Hydraulic)

    Variable pump system / Load sensing

    • Electric
    • Hydraulic

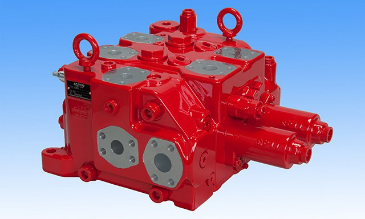

Control Valves KLW series

  • KLW series
    Pressure (MPa) 35
    Flow (L/min) 450

  • KLW series is a Load Sensing Valve which is optimized design for Wheel loader can be combined with a variable displacement pump to realize a closed-center load sensing system.

    Features
    • Optimized design for Wheel Loader.
    • Superior control is achieved with Flow Sharing (Post-Compensator).
    • Lift damper valve can be attached.
    Actuation Type (Electric / Hydraulic)

    Variable pump system / Load sensing

    • Electric
    • Hydraulic

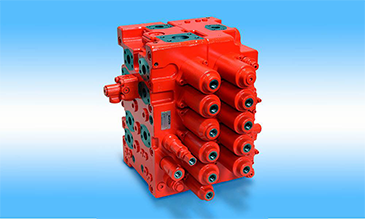

Control Valves KMX series

  • KMX series
    Pressure (MPa) 35
    Flow (L/min) 130/240/360

  • The KMX series consists of three sizes of main control valve designed specifically for the control of hydraulic excavators. Their semi-monoblock construction provides a very compact installation for main and pilot circuits. The KMX gives excellent controllability and superior system efficiency.

    Features
    • Negacon, Posicon and Electronic Posicon systems supported.
    • 130, 240 and 360 l/min service flow rates
    • 35MPa continuous pressure rating
    • Straight travel, swing priority and circuit confluence features include
