Motors

Kawasaki's offers wide range of hydraulic motors that can suit to industries such as construction machinery, industrial machinery, and shipbuilding.

Kawasaki's offers wide range of hydraulic motors that can suit to industries such as construction machinery, industrial machinery, and shipbuilding.

Axial Piston Motors (Swash Plate)
Kawasaki's axial piston motors, that have been developed utilizing the latest technologies and have high reliability based on many year experience in the market, are widely applied in the construction machinery and the industrial equipment.

We also offer the specialized motors for specific usage on the applications such as swing function of the construction machinery.

• M3X/M3B series
• M5X series
• M7V/M7VC/M7X series

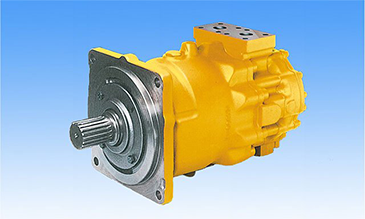

Axial Piston Motors (Swash Plate) M3X/M3B series (for Swing)

•

  Displacement (cm³)	200/280/530/800
  Output Torque (MPa)	30

• The M3X and M3B series are swash plate type axial piston motors in fixed (M3X) and variable (M3B) displacement versions. They are used extensively in mobile crusher drives, cranes and drill rigs.

  Features

  • 200, 280, 530 and 800cc displacements
  • 30MPa continuous pressure rating
  • Constant horsepower control option
  • Available with parking brake

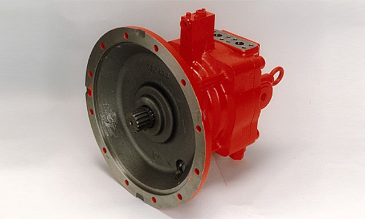

Axial Piston Motors (Swash Plate) M5X series (for Swing)

•

  Displacement (cm³)	80 – 250
  Output Torque (Nm)	415 – 1310
  Speed(min⁻¹)	2200 – 1520

• The M5X series are fixed displacement axial piston motors of swash plate design. The motor has built-in relief valve and make-up valve elements so as to achieve swing function by the connection of the piping from the control valve to the motor port.

  The design has enabled an extraordinarily compact motor with the piston/cylinder part, mechanical brake part, and attached valves part neatly arranged respectively.

  The mounting flange of the motor has been so enlarged as to enable it to be directly connected with the ring gear of a reduction gear.

  Features

  • Integrated valving for swing function.
  • Compact design
  • Directly connected to reduction gear.

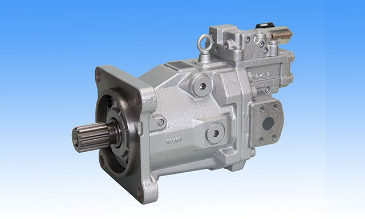

Axial Piston Motors (Swash Plate) M7V/M7VC/M7X series

•

  Displacement (cm³)	85 – 212
  Output Torque (Nm)	541 – 1437
  Speed(min⁻¹)	2200 – 1520 (at max displacement)

• The M7V / M7VC / M7X series are variable/fixed displacement motors of swash plate design that can be used in high pressure and high speed condition.

  By developing and utilizing the accumulated Kawasaki's technologies for swash plate type pump/motor, they provide superior performance in wide range of speed from very low speed to high speed rotation that has been achieved only with bent axis type motors.

  They can be used with general reduction gears or couplings as the installation dimensions (mounting size, output spline) and thread size follow international standard like ISO or SAE.

  Features

  • Smooth starting characteristic and stable operation at very low speed
  • High speed performance on a per with bent axis type motors
  • Compact size contributes to better installation
  • High reliability and Long life for high pressure spec.
  • Various control options such as electric or pressure control
