Pilot Control Valves

Kawasaki's hydraulic valves and controllers provide superior performance and control for a wide variety of construction machinery, industrial equipment and shipbuilding.

Kawasaki's pilot control valves provides superior controllability and control feeling to the operator. High reliability is proven on the various type of construction machinery.

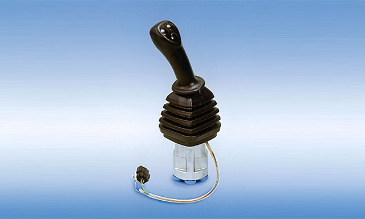

Pilot Control Valves PV48 series

•

  Pressure (MPa)	6.9
  Flow(L/min)	15 – 20

• PV48 series is a pressure-reducing type pilot valve to simultaneously control spools of multiple control valves and the tilting angle of variable displacement pumps and so forth.

  Features

  • The operational torque can be reduced according to the customer’s requirement
    (Patent registered), and the small operational force enables minute control.
  • Reduced pressure drop and quick response. (US PAT. No.6, 125, 886)
  Application

  Attachment
