Pumps

Kawasaki's axial piston pumps have been continuously developed to meet the needs of the era such as high efficiency, low noise and compact design. We offer variety of variable displacement axial piston pumps that have high performance, reliability and ease of maintenance.

Axial Piston Pumps (Open Loop)
According to the application such as construction machinery and various industrial vehicles and its hydraulic control system, Kawasaki's offers the most suitable axial piston pump from the wide range of variations.

• K3V / K5V series
• K3VLS series
• K7SP series
• K7V series
• K8V series

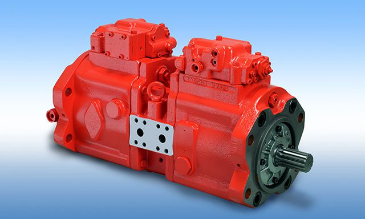

Axial Piston Pumps (Open Loop) K3V / K5V series

•

  Displacement (cm³)	63 – 280
  Pressure (MPa)	34.3

• The K3V / K5V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc.

  Various rotary group layouts, tandem type with PTO and parallel type are available to respond to applications.

  There are high reliability and more than 25 years of experience in the on mobile applications.

  Features

  • High Power Density
  • High Suction Capability
  • High Reliability
  • Wide range of control options
  Control Type

  • Electric Flow Control
  • Hydraulic Pilot Flow Control
  • Horse Power Control

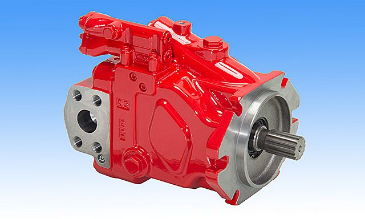

Axial Piston Pumps (Open Loop) K3VLS series

•

  Displacement (cm³)	50 – 150
  Pressure (MPa)	28

• The K3VLS series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications and industrial vehicles with medium pressure hydraulic systems.

  The K3VLS pumps enable flexible configuration in a wide range of applications with their compact size and light weight design.

  The K3VLS series pumps are available in size (rated displacement) ranging from 50 to 150 cm³/rev with various control options, such as load sensing, pressure cut-off, and horsepower controls.

  Features

  • High Pump Efficiency by applying the latest technologies
  • Compact and Light Weight Design provides flexibility in installation
  • Low Noise
  • Responsive and Stable Control Performance
  Control Type

  • Load Sensing
  • Pressure Control
  • Electric Flow Control

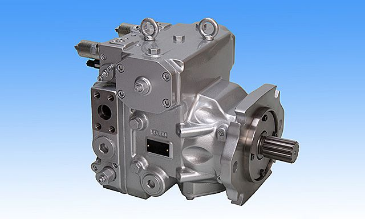

Axial Piston Pumps (Open Loop) K7SP series

•

  Displacement (cm³)	36 × 2
  Pressure (MPa)	30

• The K7SP series are variable displacement axial piston pumps of swash plate design for mini excavators and other industrial vehicles.

  Remarkable noise reduction has been achieved by the latest technologies for noise reduction.

  An optional pump can be attached.

  Features

  • Compact Design
  • Compact construction
  • High reliability
  • Low Noise
  Control Type

  • Horse Power Control

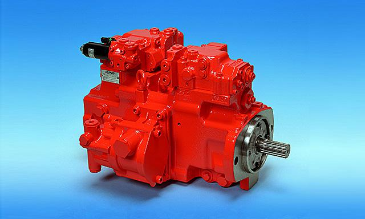

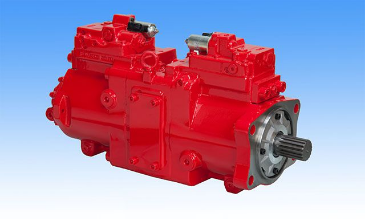

Axial Piston Pumps (Open Loop) K7V series

•

  Displacement (cm³)	65 – 140
  Pressure (MPa)	35

• The K7V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc.

  With the Kawasaki's latest technologies for improving efficiency and lowering noise, they achieve the world’s top-level pump efficiency and low noise which contribute to energy saving on applications and comfortable working environment.

  A long life is obtained by adopting large capacity of bearing and thicker shaft which reduces the load on the edge of bearing rollers.
  Power density is 1.5 times higher than K3V series.

  Features

  • High Pump Efficiency
  • Low Noise
  • High reliability
  • High Power Density
  Control Type

  • Electric Flow Control
  • Hydraulic Pilot Flow Control
  • Horse Power Control

Axial Piston Pumps (Closed Loop) K8V series

•

  Displacement (cm³)	71 – 130
  Pressure (MPa)	42

• The K8V series are variable displacement axial piston pumps for closed loop system.

  With the Kawasaki's latest technologies for improving efficiency and lowering noise, they achieve the world’s top-level pump efficiency and low noise which contribute to energy saving on applications and comfortable working environment.

  Delivery flow is controlled precisely in response to control signal by mechanical feedback of swash plate tilting position.

  Features

  • World’s top-level pump efficiency and low noise
  • Precise flow control by position feedback of swash plate tilting position
  • High reliability and Long life for high pressure spec
  • Charge pump, High/Low pressure relief valve, and Cut-off valve are standard option
  • Electric proportional control, Hydraulic pilot displacement control and Manual control are available.
  Control Type

  • Electric Flow Control
  • Hydraulic Pilot Flow Control
